Industrial Use

OPV

Catalogue Download Share Facebook

  • Coastline Surveillance

  • Marine Pollution

  • Disaster Monitoring

  • Illegal Fishing

  • Major Facility Surveillance

  • Information Gathering

  • T/O & Landing : Automatic Take-off & Landing
  • Mission Payload : EO / IR Camera
  • Flight Mode : Fully Autonomous Flight, Auto-homing in Emergency, Navigation, Automatic/Manual Flight
Features

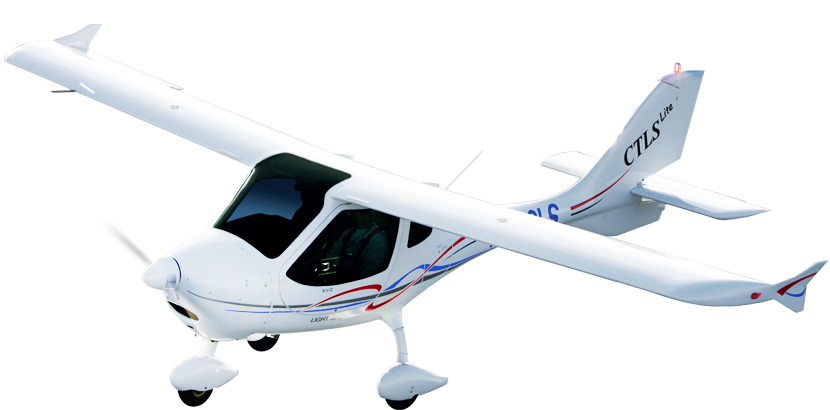

  • -Unmanned Technology of CTLS (*CTLS : 2 Sits LSA Level)
  • -Full Autonomous Flight, Navigation
  • -Payload : Over 60kg
  • -Real Time Data Transmission
  • -Wide Coverage for Surveillance & Reconnaissance
Specifications
Specifications
Size 8.6m(W) / 6.6m(L) / 2.34m(H) MTOW 600kg
Flight Time 24 hrs Speed Crusing Speed 185kph(Vc) / 222kph(VH)
Range More than 100Km (Option : Satellite 500Km) Configuration Vehicle / GCS / Payload
Communication C-Band Communication (10Mbps) Video 720P HD(EO)
Payload 3-Axis Stabilization Gimbal (EO/IR)

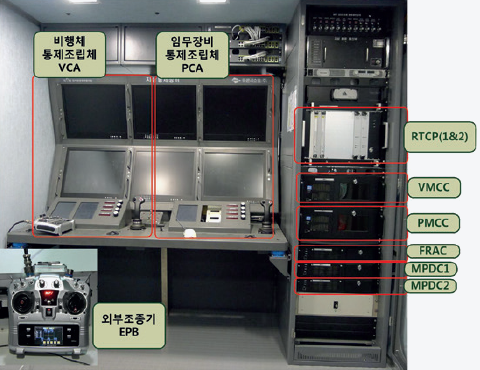

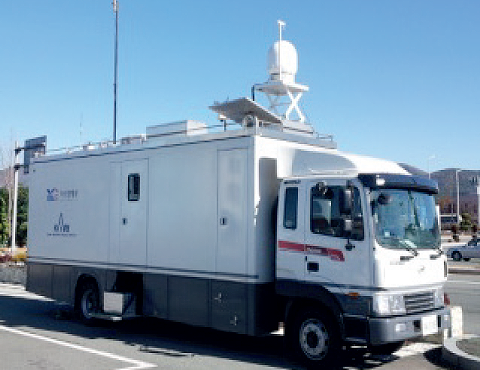

GCS Configuration

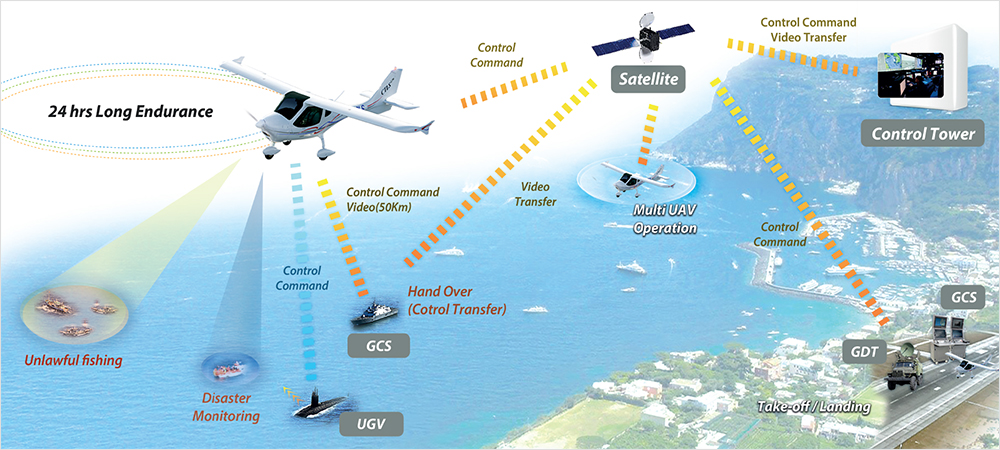

Operational concept
